Tigris's object store's authentication & authorization

· 4 min read
Jigar Joshi

Tigris being S3 compatible, offers S3-supported authentication and authorization methods. AWS S3 evolved in offerings for their authentication and authorization needs. We support what AWS S3 recommends to their users as of now for the AuthN and AuthZ needs.

illustration_authentication_authorization_in_computer_security

Authentication​

Tigris offers two mechanisms for authentication.

  • AWS signature version 4
  • Session token

AWS Signature version 4​

This authentication method is based on a hash-based signature. The first selected element of the request is picked and converted to a string. A signing key signs this formed string version and a hash-based message authentication code (HMAC) is derived. The signing key is derived from the secret access key. The AWS S3 SDK handles this signature generation part.

The server then receives a request along with the signature and the access_key_id. The server recreates the signature and compares the incoming signature. This is how the server authenticates and fetches the authenticated user’s context.

This mechanism relies on the access key - Tigris supports IAM’s CreateAccessKey API to generate access keys. These keys are stored on Tigris server in an encrypted form with AES 256-bit encryption.

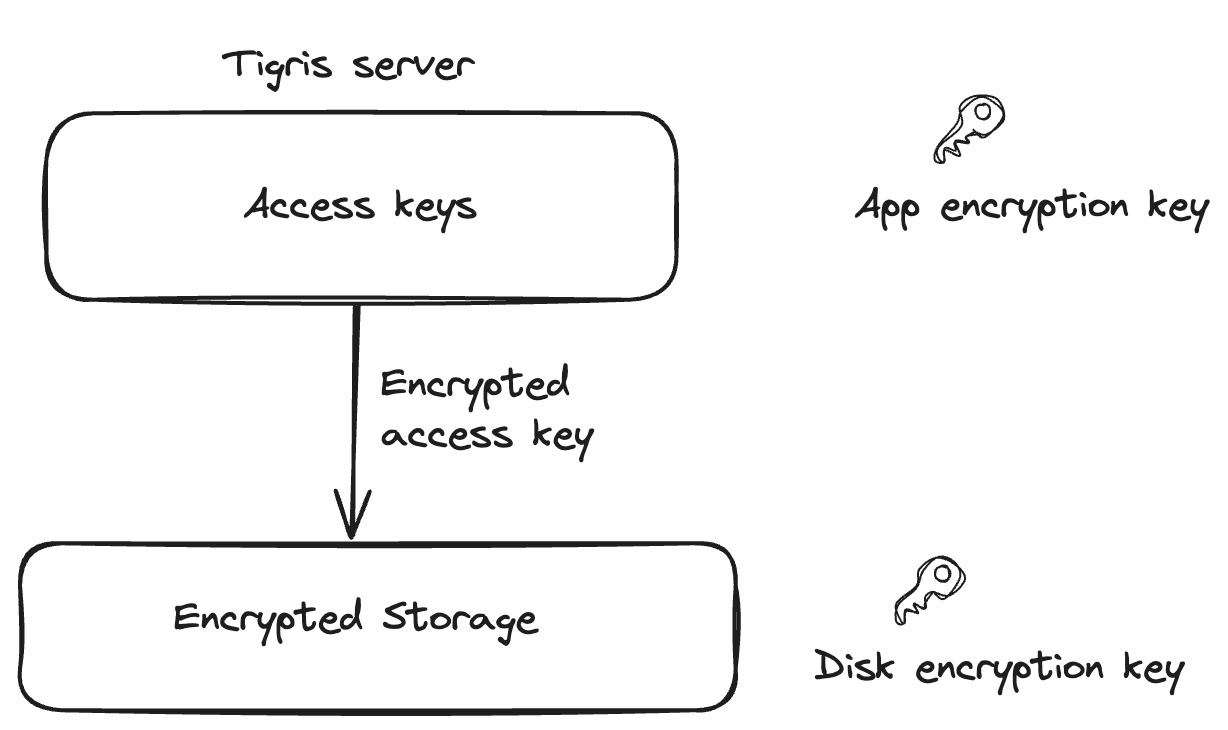

Double encryption of access key

Session Token​

This mechanism is based on the idea of temporary credentials. Within the Tigris, this is mainly used for human users when interacting with Tigris’s web console. The session token has a limited lifetime. Tigris uses JWT (JSON Web Token) as the session token. This token is signed by an authentication provider using the RS256 algorithm. When the user logs in to Tigris’s web console, Tigris’s authentication service issues the JWT which has a lifetime of 24 hours. This JWT contains the metadata about the user, for example: the org ids, and user id. Here is an example of a JWT payload.

{
  "https://tigris": {
    "e": "jmj@tigrisdata.com",
    "ns": ["tigris-data"]
  },
  "iss": "https://tigrisdata-dev.us.auth0.com/",
  "sub": "oauth2|flyio-sso|<123>",
  "aud": [
    "https://tigris-os-api-dev",
  ],
  "iat": 1699302053,
  "exp": 1699388453,
  "azp": "<azp_val>",
  "scope": "openid profile email offline_access"
}

As shown above, the token contains the Tigris’s tenant id (https://tigris.n) and user’s email address (https://tigris.e) along with the user id (sub).

This session token is signed by Tigris’s authentication service using RS256. This token is fed to the AWS S3 client as a session token field. When a Tigris server receives a request containing the session token via header x-amz-security-token, Tigris validates the signature of the JWT by using the public key rendered by Tigris’s authentication service. If the signature is valid, Tigris server further validates the claims made by the token. Such as issuer, audience, and expiration.

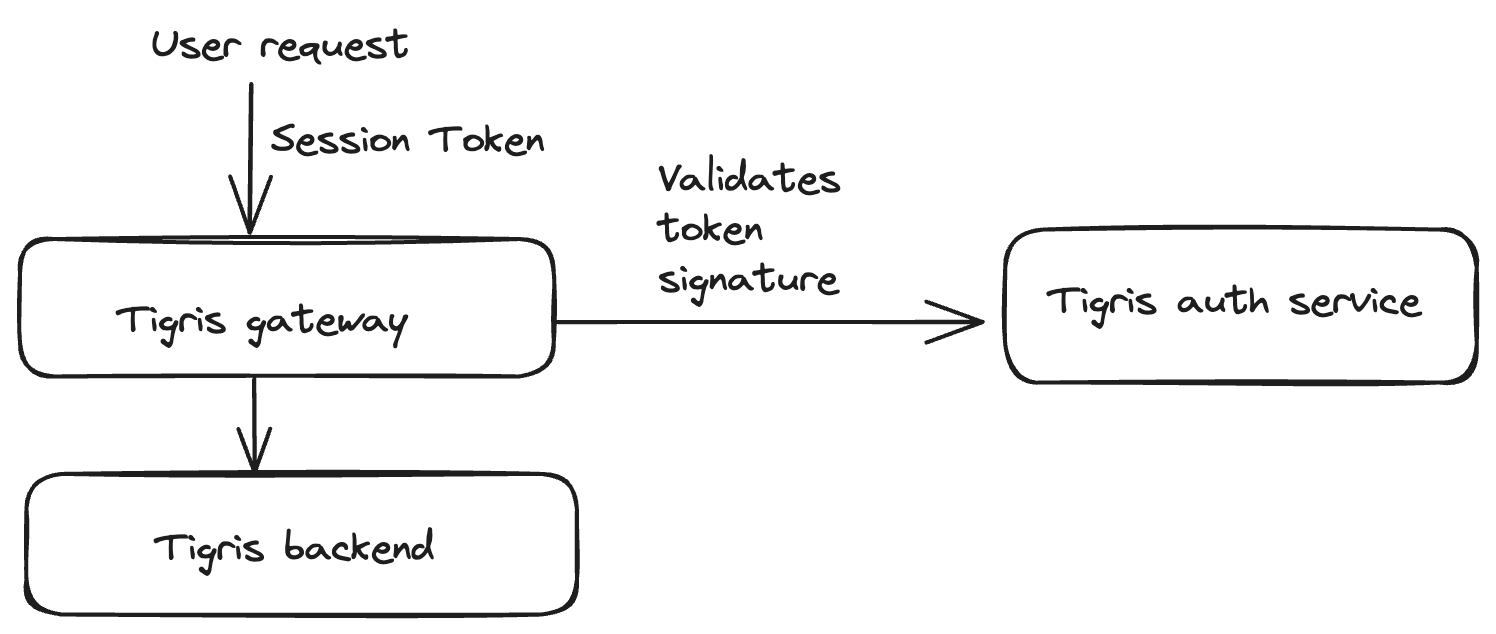

Session token based authentication

Authorization​

Tigris supports AWS’s IAM policies mechanism as the authorization system. IAM policies for s3 buckets are highly flexible and powerful to craft any sort of access control.

Here is an example of the IAM policy

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": "s3:GetObject",
      "Resource": "arn:aws:s3:::images/*"
    }
  ]
}
  • "Version": "2012-10-17": Specifies the version of the policy language.
  • "Statement": An array of one or more statements that define the

permissions. In this case, there is only one statement.

  • "Effect": "Allow": Specifies whether the action is allowed or denied.
  • "Action": "s3:GetObject": Specifies the action that is allowed. In this

case, it allows the GetObject action, which is used for reading (downloading) objects from the bucket.

  • "Resource": "arn:aws:s3:::images/*": Specifies the Amazon Resource Name

(ARN) of the S3 resource to which the policy applies. In this example, it grants permission to all objects (/*) in the specified bucket (images).

These policies are standalone on their own, they need to be attached to the user in order to apply them.

After the user has been authenticated successfully, the system gets the context about the current user. This context includes metadata about users like user_id, user_role (namespace_owner, regular), for machine users (access keys), human_user_id, and so on. Using these users’ metadata, Tigris pulls the attached IAM policies for this user from its IAM store. Along with the user's context with regards to the bucket is pulled if the user is the owner of the bucket.

With this information, Tigris evaluates the access and grants or denies access to the operation.

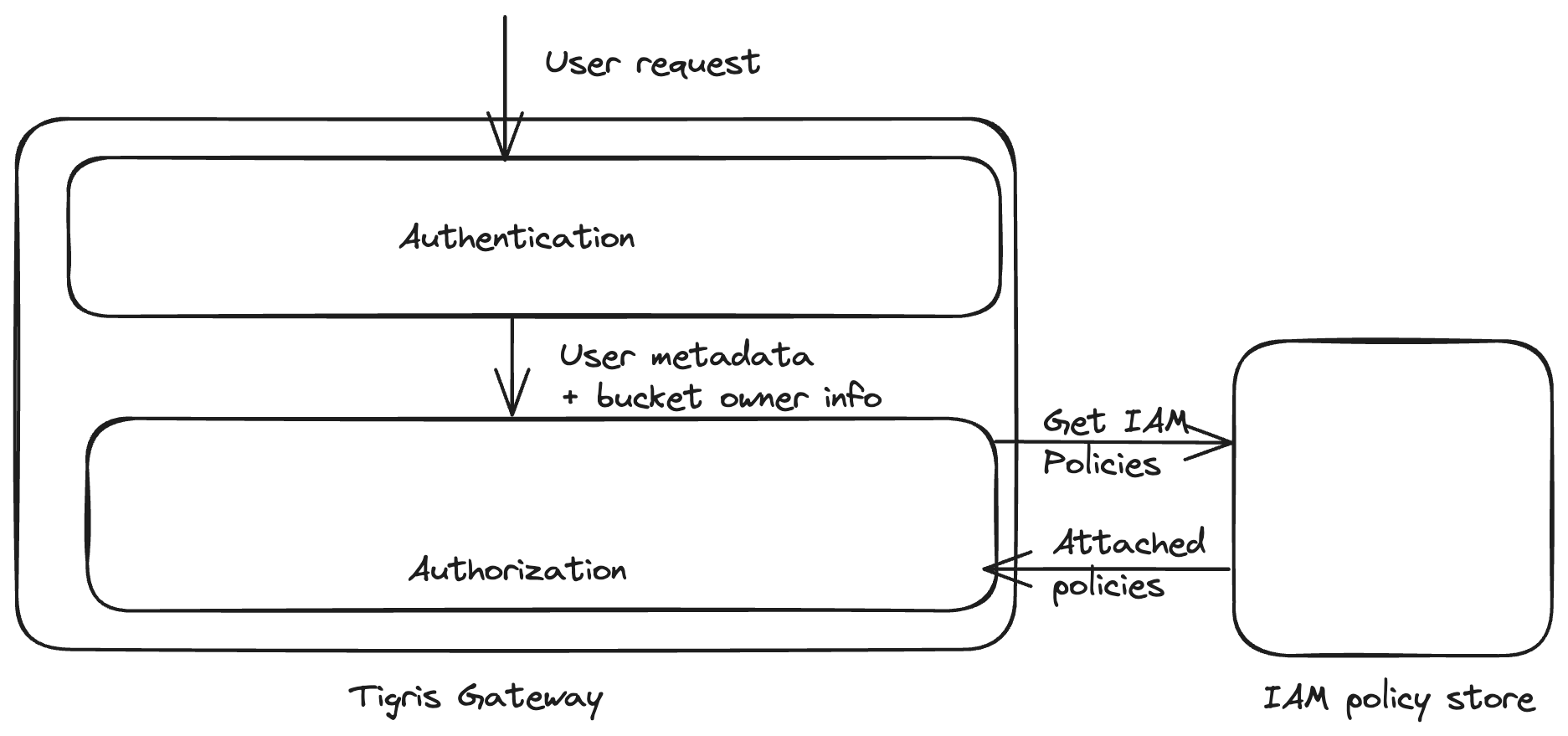

Authorization
